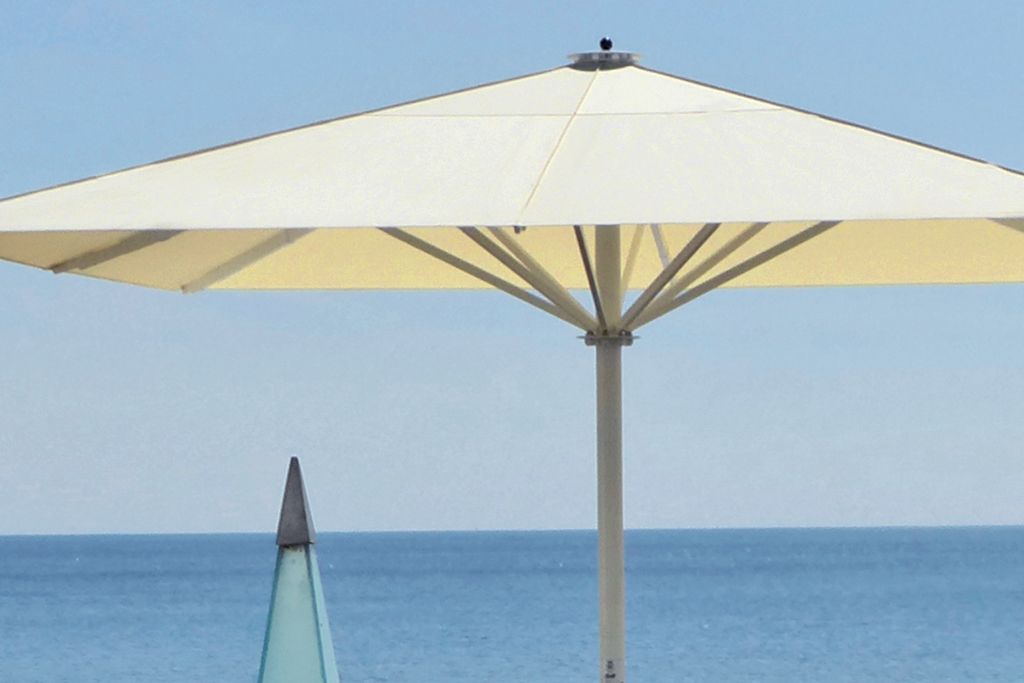

XL - the little big one



More than 40 different sizes - all weather conditions - individual set-up
(fabric - print - frame - electrics) - crank mechanism

  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
  • XL  -  the little big one
Mast:
Aluminium 80 x 3 mm / 80 x 4 mm

Braces:
35 x 35 mm / 45 x 25 mm

Handling:
Crank mechanism with lifting spindle (counter-telescoping)

Cover:
6  Colour cards,
2  POLYESTER, 100% polyester fabric, 195 g/qm, HH approx. 800 mm, UV 50+
3  ACRYL, 100% acrylic, approx. 300 g/m², maximum light-fastness, proofed for water resistance, extremely durable. UPF 50+ (Australian standard).


Mobility:

Windpower resistance:

Accessories:


2 year guarantee on frame and function





300 cm [7,06 m2]  8 Braces
A
closed height
250 cm

B
opened height
280 cm

C
internal height without valance
225 cm

D
internal height with valance
195 cm

E
closed space up to supporting
160 cm

F
closed space up to valance
130 cm


weight
28 kg

350 cm [9.6 m2]  8 Braces
A
closed height
360 cm

B
opened height
290 cm

C
internal height without valance
230 cm

D
internal height with valance
200 cm

E
closed space up to supporting
155 cm

F
closed space up to valance
125 cm


weight
29 kg

400 cm [12.6 m2]  8 Braces
A
closed height
370 cm

B
opened height
300 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
145 cm

F
closed space up to valance
115 cm


weight
31 kg

450 cm [15.9 m2]  8 Braces
A
closed height
380 cm

B
opened height
300 cm

C
internal height without valance
240 cm

D
internal height with valance
210 cm

E
closed space up to supporting
135 cm

F
closed space up to valance
105 cm


weight
32 kg

500 cm [19.6 m2]  8 Braces
A
closed height
390 cm

B
opened height
310 cm

C
internal height without valance
240 cm

D
internal height with valance
210 cm

E
closed space up to supporting
125 cm

F
closed space up to valance
95 cm


weight
35 kg

550 cm [23,7 m2]  8 Braces
A
closed height
405 cm

B
opened height
315 cm

C
internal height without valance
240 cm

D
internal height with valance
210 cm

E
closed space up to supporting
115 cm

F
closed space up to valance
85 cm


weight
38 kg

600 cm [28.2 m2]  0 Braces
A
closed height
430 cm

B
opened height
330 cm

C
internal height without valance
240 cm

D
internal height with valance
210 cm

E
closed space up to supporting
90 cm

F
closed space up to valance
60 cm


weight
57 kg

200 x 200 cm [4 m2]  8 Braces
A
closed height
330 cm

B
opened height
270 cm

C
internal height without valance
225 cm

D
internal height with valance
195 cm

E
closed space up to supporting
138 cm

F
closed space up to valance
108 cm


weight
20 kg

250 x 250 cm [6,2 m2]  8 Braces
A
closed height
360 cm

B
opened height
270 cm

C
internal height without valance
225 cm

D
internal height with valance
195 cm

E
closed space up to supporting
160 cm

F
closed space up to valance
130 cm


weight
23 kg

300 x 300 cm [9 m2]  8 Braces
A
closed height
370 cm

B
opened height
290 cm

C
internal height without valance
230 cm

D
internal height with valance
200 cm

E
closed space up to supporting
160 cm

F
closed space up to valance
130 cm


weight
33 kg

350 x 350 cm [12.2 m2]  8 Braces
A
closed height
390 cm

B
opened height
290 cm

C
internal height without valance
225 cm

D
internal height with valance
205 cm

E
closed space up to supporting
140 cm

F
closed space up to valance
110 cm


weight
31 kg

400 x 400 cm [16 m2]  8 Braces
A
closed height
410 cm

B
opened height
310 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
110 cm

F
closed space up to valance
80 cm


weight
45 kg

450 x 450 cm [20.2 m2]  8 Braces
A
closed height
415 cm

B
opened height
320 cm

C
internal height without valance
240 cm

D
internal height with valance
210 cm

E
closed space up to supporting
85 cm

F
closed space up to valance
55 cm


weight
40 kg

500 x 500 cm [25 m2]  8 Braces
A
closed height
425 cm

B
opened height
330 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
72 cm

F
closed space up to valance
42 cm


weight
49 kg

200 x 250 cm [5 m2]  8 Braces
A
closed height
350 cm

B
opened height
262 cm

C
internal height without valance
225 cm

D
internal height with valance
195 cm

E
closed space up to supporting
190 cm

F
closed space up to valance
160 cm


weight
21 kg

200 x 300 cm [6 m2]  8 Braces
A
closed height
345 cm

B
opened height
262 cm

C
internal height without valance
225 cm

D
internal height with valance
195 cm

E
closed space up to supporting
173 cm

F
closed space up to valance
133 cm


weight
21 kg

200 x 350 cm [7 m2]  8 Braces
A
closed height
368 cm

B
opened height
268 cm

C
internal height without valance
230 cm

D
internal height with valance
200 cm

E
closed space up to supporting
170 cm

F
closed space up to valance
140 cm


weight
22 kg

200 x 400 cm [8 m2]  8 Braces
A
closed height
369 cm

B
opened height
272 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
138 cm

F
closed space up to valance
108 cm


weight
27 kg

250 x 300 cm [7,5 m2]  8 Braces
A
closed height
365 cm

B
opened height
273 cm

C
internal height without valance
225 cm

D
internal height with valance
195 cm

E
closed space up to supporting
160 cm

F
closed space up to valance
130 cm


weight
25 kg

250 x 350 cm [8,75 m2]  8 Braces
A
closed height
378 cm

B
opened height
292 cm

C
internal height without valance
230 cm

D
internal height with valance
200 cm

E
closed space up to supporting
155 cm

F
closed space up to valance
125 cm


weight
27 kg

250 x 400 cm [10 m2]  8 Braces
A
closed height
375 cm

B
opened height
285 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
135 cm

F
closed space up to valance
105 cm


weight
29 kg

250 x 500 cm [12,5 m2]  8 Braces
A
closed height
400 cm

B
opened height
300 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
117 cm

F
closed space up to valance
87 cm


weight
42 kg

300 x 350 cm [10,5 m2]  8 Braces
A
closed height
380 cm

B
opened height
295 cm

C
internal height without valance
230 cm

D
internal height with valance
200 cm

E
closed space up to supporting
150 cm

F
closed space up to valance
120 cm


weight
29 kg

300 x 400 cm [12 m2]  8 Braces
A
closed height
390 cm

B
opened height
300 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
140 cm

F
closed space up to valance
110 cm


weight
39 kg

300 x 450 cm [13,5 m2]  8 Braces
A
closed height
405 cm

B
opened height
300 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
110 cm

F
closed space up to valance
80 cm


weight
34 kg

300 x 500 cm [15 m2]  8 Braces
A
closed height
405 cm

B
opened height
315 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
98 cm

F
closed space up to valance
68 cm


weight
38 kg

300 x 600 cm [18 m2]  8 Braces
A
closed height
420 cm

B
opened height
320 cm

C
internal height without valance
240 cm

D
internal height with valance
210 cm

E
closed space up to supporting
85 cm

F
closed space up to valance
55 cm


weight
46 kg

350 x 400 cm [14 m2]  8 Braces
A
closed height
405 cm

B
opened height
305 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
135 cm

F
closed space up to valance
105 cm


weight
31 kg

350 x 450 cm [14 m2]  8 Braces
A
closed height
400 cm

B
opened height
305 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
120 cm

F
closed space up to valance
90 cm


weight
35 kg

350 x 500 cm [17,5 m2]  8 Braces
A
closed height
405 cm

B
opened height
310 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
92 cm

F
closed space up to valance
62 cm


weight
38 kg

350 x 550 cm [19,25 m2]  8 Braces
A
closed height
420 cm

B
opened height
320 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
95 cm

F
closed space up to valance
55 cm


weight
46 kg

350 x 600 cm [21 m2]  8 Braces
A
closed height
420 cm

B
opened height
315 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
70 cm

F
closed space up to valance
40 cm


weight
48 kg

400 x 450 cm [18 m2]  8 Braces
A
closed height
410 cm

B
opened height
320 cm

C
internal height without valance
235 cm

D
internal height with valance
205 cm

E
closed space up to supporting
100 cm

F
closed space up to valance
70 cm


weight
36 kg

400 x 500 cm [20 m2]  8 Braces
A
closed height
415 cm

B
opened height
320 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
85 cm

F
closed space up to valance
55 cm


weight
51 kg

400 x 550 cm [22 m2]  8 Braces
A
closed height
425 cm

B
opened height
320 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
85 cm

F
closed space up to valance
55 cm


weight
48 kg

400 x 600 cm [24 m2]  8 Braces
A
closed height
425 cm

B
opened height
330 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
65 cm

F
closed space up to valance
35 cm


weight
50 kg

400 x 650 cm [26 m2]  8 Braces
A
closed height
455 cm

B
opened height
330 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
65 cm

F
closed space up to valance
35 cm


weight
56 kg

450 x 500 cm [22,5 m2]  8 Braces
A
closed height
425 cm

B
opened height
320 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
85 cm

F
closed space up to valance
55 cm


weight
48 kg

450 x 550 cm [24,7 m2]  8 Braces
A
closed height
455 cm

B
opened height
330 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
90 cm

F
closed space up to valance
60 cm


weight
52 kg

450 x 600 cm [27 m2]  8 Braces
A
closed height
455 cm

B
opened height
330 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
72 cm

F
closed space up to valance
42 cm


weight
58 kg

500 x 550 cm [27,5 m2]  8 Braces
A
closed height
425 cm

B
opened height
320 cm

C
internal height without valance
245 cm

D
internal height with valance
215 cm

E
closed space up to supporting
65 cm

F
closed space up to valance
35 cm


weight
56 kg

Cover:
Details
6  Colour cards,
2  POLYESTER, 100% polyester fabric, 195 g/qm, HH approx. 800 mm, UV 50+
3  ACRYL, 100% acrylic, approx. 300 g/m², maximum light-fastness, proofed for water resistance, extremely durable. UPF 50+ (Australian standard).

HH = Hydrostatic head

Different dimensions on request.
All dimensions are approximate.





Fastening > Ground sockets

Ground socket, 80 mm

Ground socket, 80 mm

Galvanised steel, two-part.
Item no.: 500051


Electrics > Fixed > Heating

infrared radiant heater 1.5 KW

infrared radiant heater 1.5 KW

Colour: whtie or silver gray
Item no.: 690006

Fits:
ROYAL EAGLE
XL
STORMBREAKER
XXL

Model with a switch (for external switching), with a bracket for fastening to the tensioning braces or a corresponding folding bracket.


Electrics > Fixed > Installation packages

“Heating” installation package

“Heating” installation package

Fixed installation
Item no.:

Fits:
XL
Stormbreaker
XXL

Safety wiring integrated in the umbrella mast. Distributor hub with 4 connections (Hirschmann) for infrared radiant heaters with an output of 1.5 kW each. Cannot be retrofitted.


Textiles > Side walls

Textile sidewalls with / without windows

Textile sidewalls with / without windows

made of umbrella fabric
with transparent film

Fits:
ROYAL EAGLE
XL
STORMBREAKER
XXL

For fastening to the ends of the braces, incl. fastening material (brackets and inserted aluminium profiles), colour according to specifications.



More products

  • Sidewind
  • Levante - by Bambrella
  • Capri sunshade – The indestructible one.
  • Nizza sunshade - The entry-level model
  • XL  -  the little big one
  • Liberty MX
  • Bali sunshade - your business card
  • Royal Eagle - The perfect one
  • Stormbreaker® - The all-weather umbrella.
  • XXL - Our largest umbrella.

These data are deleted after your query has been fully processed. Please note that you can withdraw your consent at any time with future effect by e-mailing info@tophovengmbh.de. Detailed information on how user data are dealt with can be found in our data protection statement.
